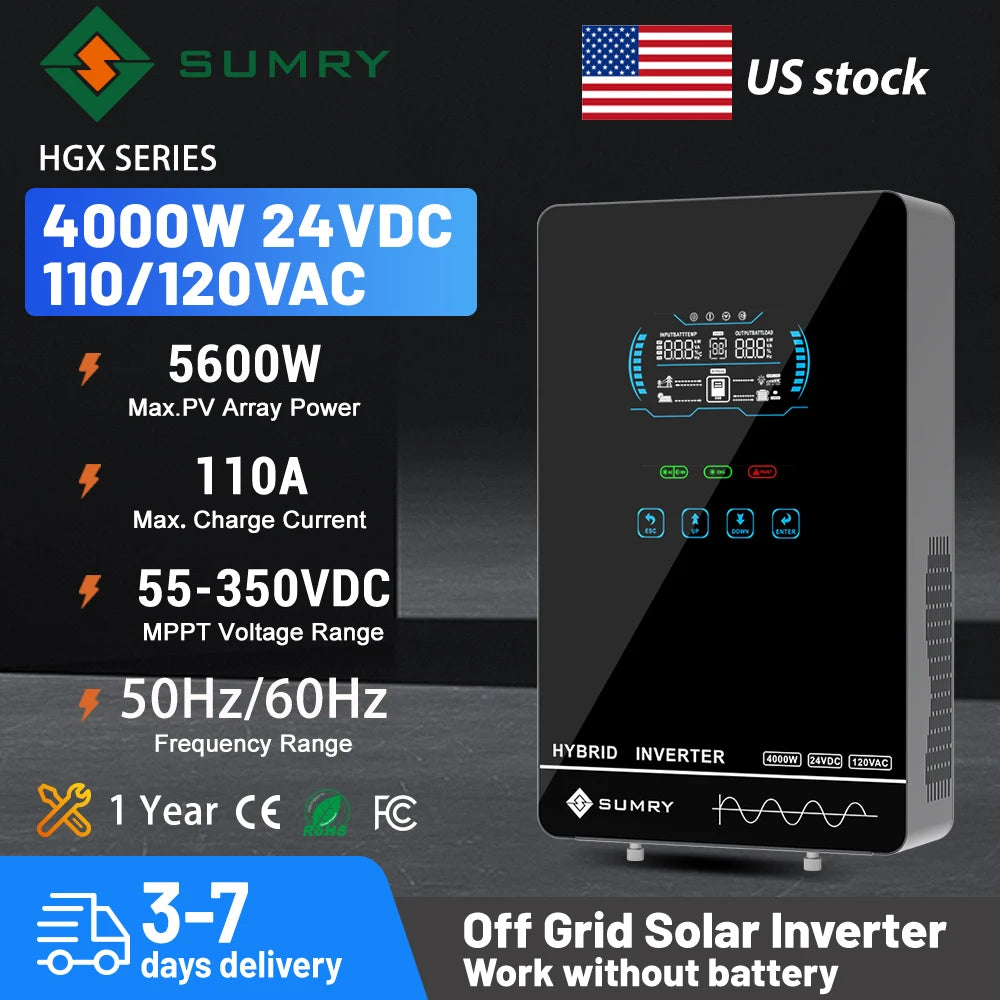

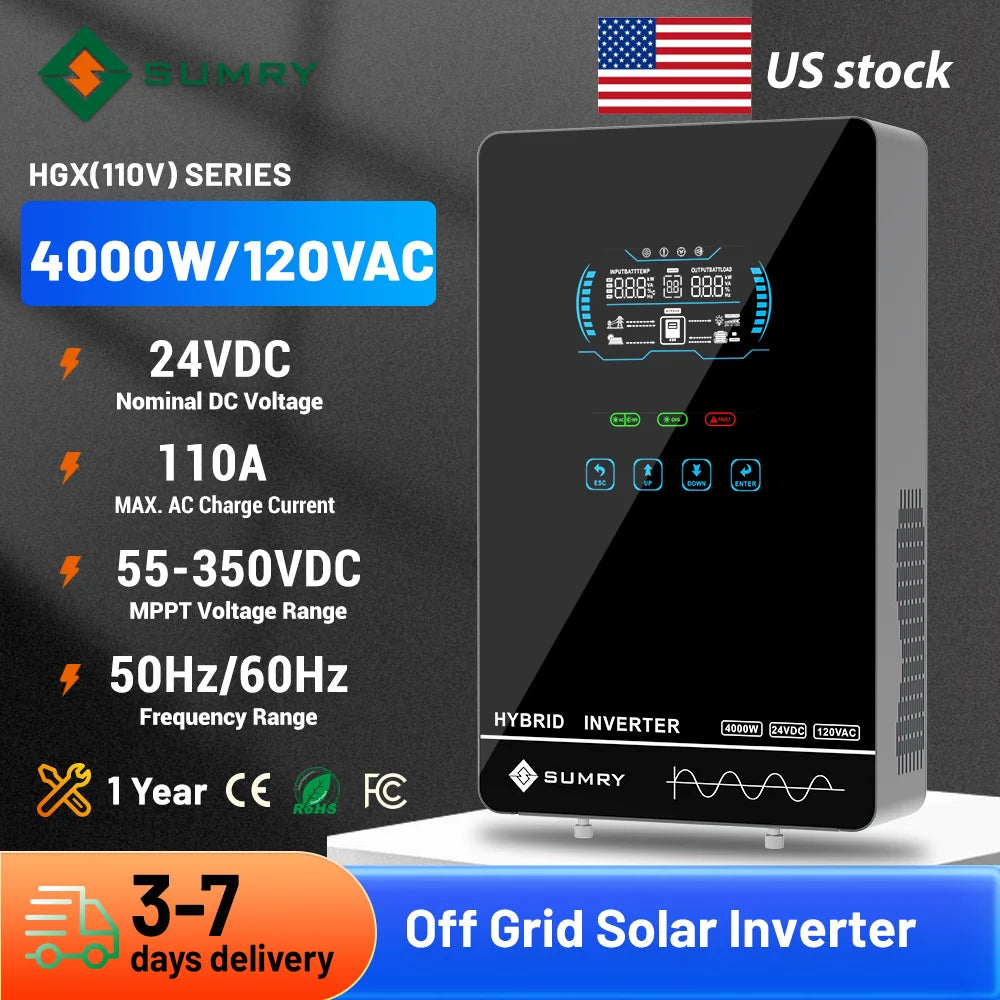

Keep your home loads supplied with an off-grid inverter that combines solar charging, battery charging, and 110–120VAC output.
-

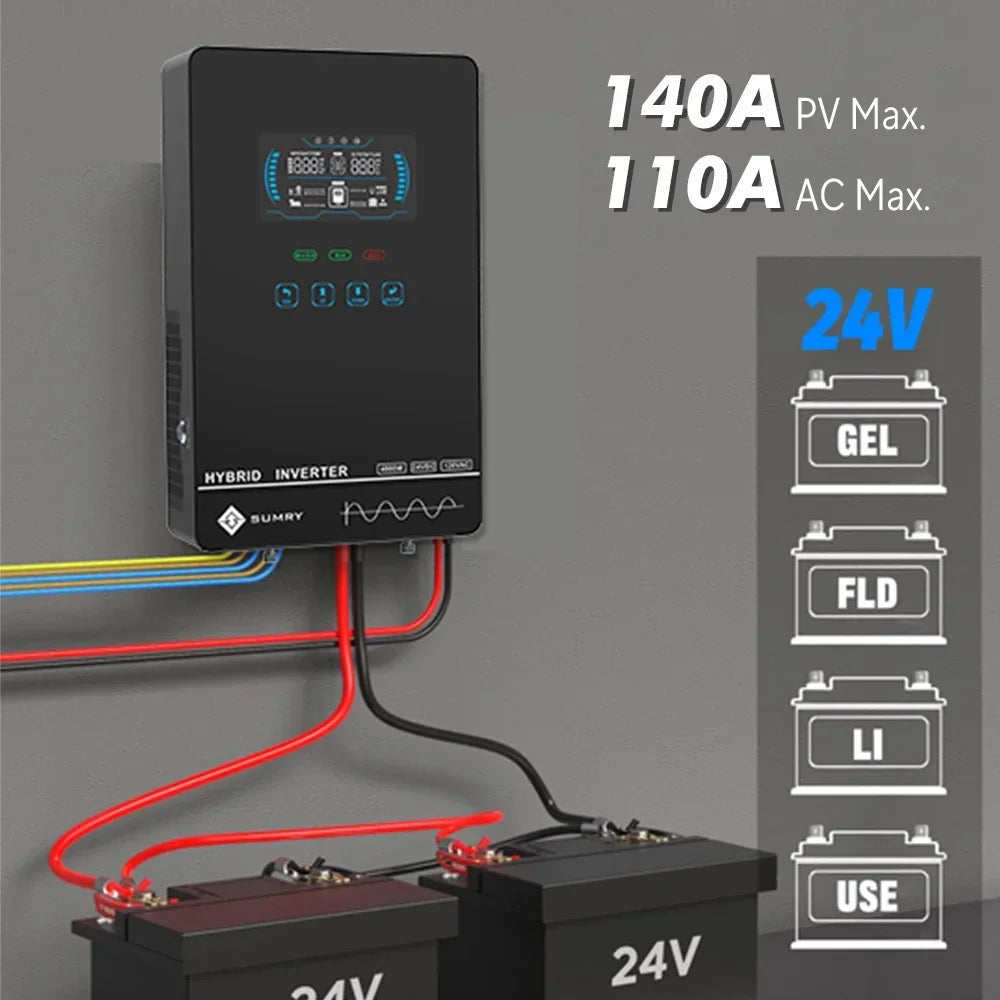

Solar charging: The built-in 140A MPPT controller supports 55–350VDC PV input and up to 5,600W of solar charging, giving you flexibility when planning your panel array.
-
Flexible power: You get 4,000W output, a 24V battery connection, and pure sine wave power. Use compatible lithium, LiFePO4, lead-acid, gel, or AGM batteries—or run without a battery.
-
Easy settings: Use the 6.25-inch LCD and touch buttons to adjust charging current, input priority, and acceptable input voltage. Choose from three charging modes and two output modes.
-

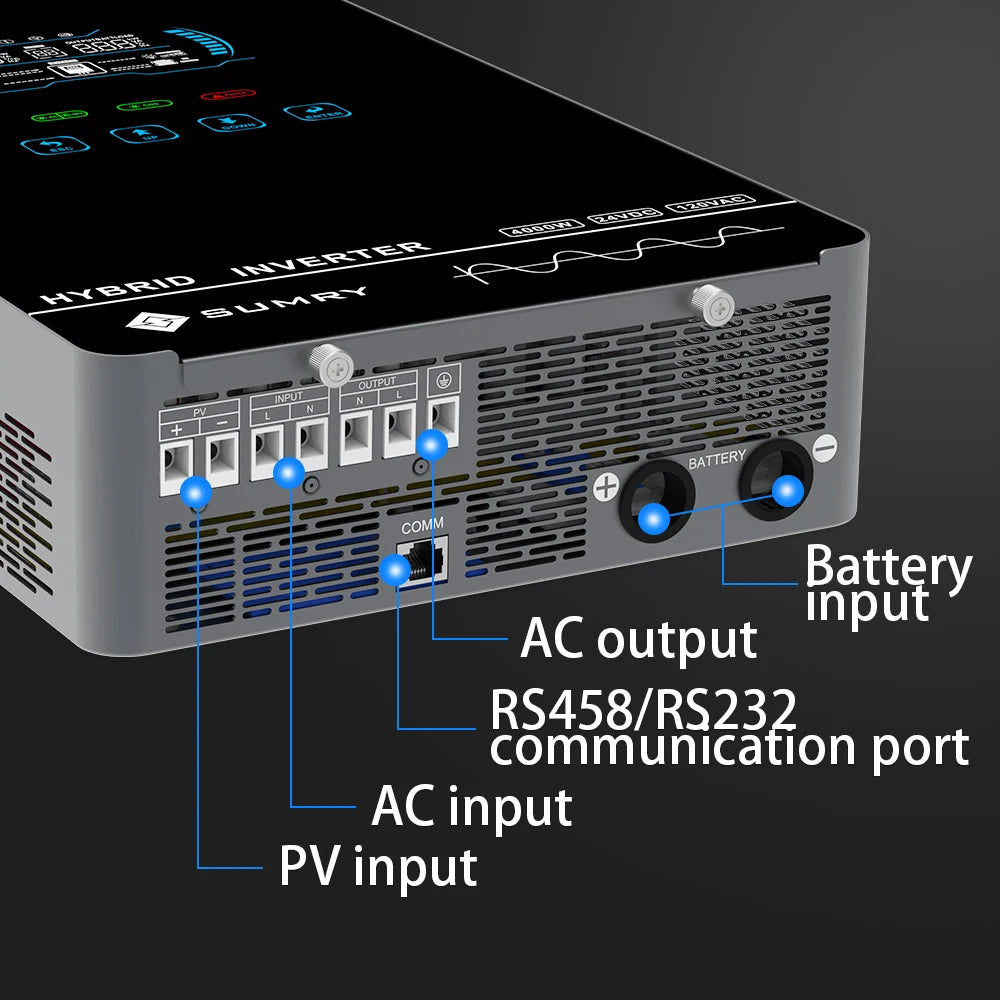

Protection and communication: Overload, over-temperature, and short-circuit protection support daily use. BMS communication uses PACE or PYLONTECH protocols; optional Wi-Fi uses the same communication port. Install circuit breakers rated 2P200A for the battery, 2P20A for PV, 2P63A for utility input, and 2P40A for output.
